Lugar de origem:
China
Marca:
RealRun
Certificação:
ISO9001, SGS, Rohs, Reach
Número do modelo:
BH2.0*6.4-nP 10P

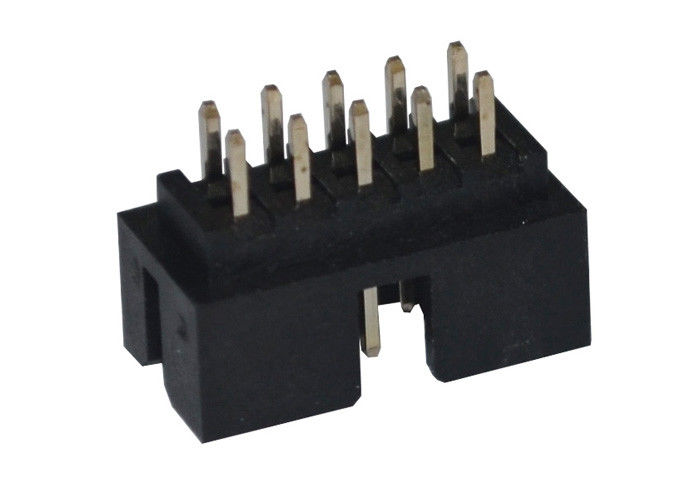

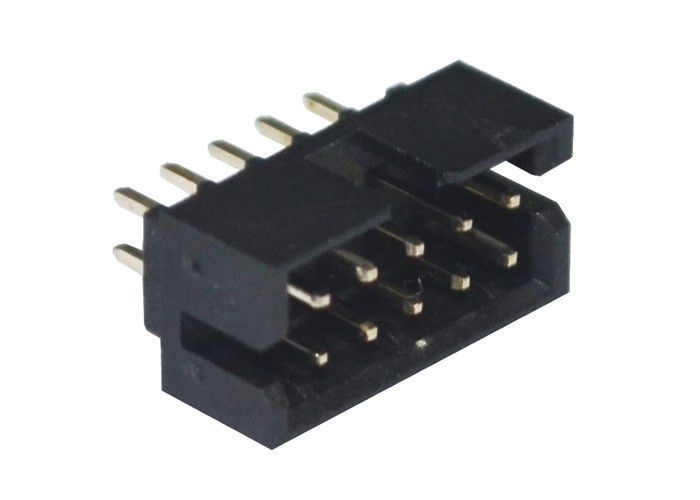

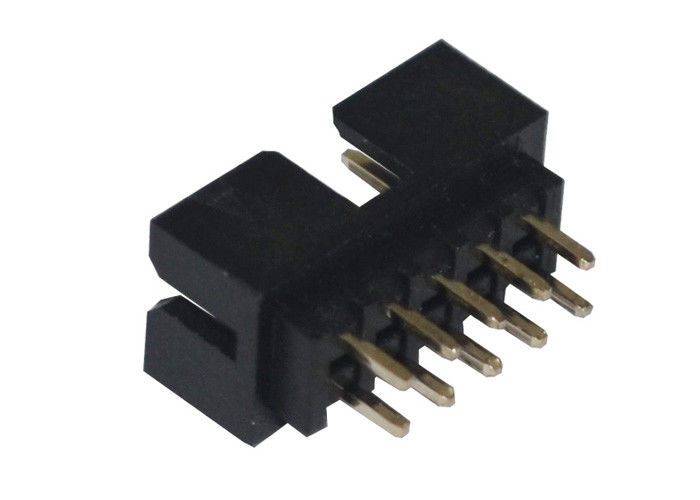

DIP 2.0mm 10 Pin Straight Pin Header Connector High Temperature Resistantce
|
Current Rating |
2.0AMP |
|
Contact Resistance |
20mΩ Max |
|
Withstand Voltage |
500V AC/DC |
|
Insulation Resistance |
1000mΩ Min |
|
Operation Temperature |
-40℃ to +105℃ |
|
Contact Material |
Brass |
|
Contact Plating |
Au or Sn over Ni |
|
Insulator Material |
LCP +30％GF( UL94V-0 ) |
|
Product name: Box header connector |
||
|
1. Product features: high temperature resistant to high voltage electrical conductivity |
||
|
2. Product material: PA9T/LCP/PBT, plating surface treatment: gold-plated or tin plating |
||
|
3. Scope of application: Mainly suitable for data communication and electronic equipment and welding on the PCB board, connected to the corresponding specification of IDC ribbon cable and the other circuit designers need to circuit. And if current usually transmission control signal |
OEM/ODM Capability
Our complete range of products manufactured according to ISO 9001:2000 guidelines is at your disposal.
OEM services encompass buyers logo or label, designs services plus a whole after sales support package.
Customer Satisfaction
Please don’t hesitate to contact us if you have any questions or concerns before or after your purchase. We are committed to your 100% satisfaction.
Payment Terms
There are many payment methods available such as D/A, D/P, T/T and Paypal.
Why choose us
Have a strong research and development ability for a new product
Equipment and manufacturing ability for would
Competitive price , and in time delivery well-selling in both domestic and foreign markets.
Acquired the ISO9001-2000 quality management system certification , ISO9001 environmental management system and UL certification .
Reasonable prices, very competitive and reliable.
Excellent sales team and tech team ready to serve you.
Fast delivery.
OEM services with agreed quantity by both parties.
Specializes in the development , design , production and sale of communication network connectors .
We hope to make long term business cooperation with all our customers
